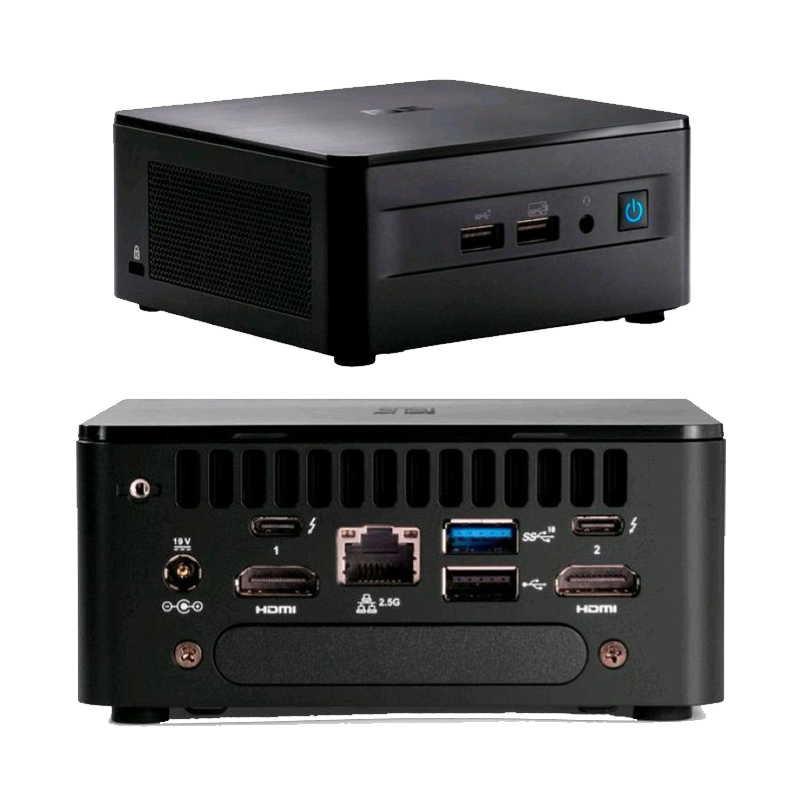

Asus Nuc Tall Kit intel i3 1315U Intel UHD Graphics 90AR00C1-M00040
-Part Number: 90AR00C1-M00040
-CPU: Intel® Core™ i3-1315U 4.5GHZ, cTDP 20W
-RAM: 2 x SO-DIMM, Up to DDR4-3200, 32GB*2
-Internal Drive:M.2 22x80 key M slot for PCIe x4 Gen 4 NVMe SSD, M.2 22x42 key B slot for PCIe x1 Gen 3, USB 3.2 Gen 2, USB 2.0 and SATA SSD expandability, Support in high enclosures for a third SSD with 2.5-inch drive (up to 15 mm high)
-Graphics: Intel UHD Integrated
-Wireless data network: Intel® Wi-Fi 6E AX211 (Gig+), Bluetooth 5.2
-Lan: 2.5 Gigabit Intel Ethernet Controller I226-V/LM
-Audio: Realtek ALC269, 1x headphone/microphone combo port
-OS: DOS
-Ports: 2 x Thunderbolt 4 Type-C w/ DisplayPort 1.4, 1 x USB 3.2 Gen 2 Type-A, 1 x USB 2.0 Type-A, 2 x HDMI 2.1 (TMDS), 1 x RJ45 LAN, 1 x DC-in
Daily Updated Website
Delivery all Over Lebanon
Best Price Guaranteed
| Intel® NUC Kit NUC8i5BEH () | |
| Essentials | |
| Product Collection | Intel® NUC Kit with 8th Generation Intel® Core™ Processors |
| Code Name | Products formerly BEAN CANYON |
| Status | Launched |
| Launch Date | Q3'18 |
| Board Form Factor | UCFF (4" x 4") |
| Socket | Soldered-down BGA |
| Internal Drive Form Factor | M.2 and 2.5" Drive |
| # of Internal Drives Supported | 2 |
| Lithography | 14 nm |
| TDP | 28 W |
| DC Input Voltage Supported | 12-19 VDC |
| Processor Included | Intel® Core™ i5-8259U Processor (6M Cache, up to 3.80 GHz) |
| Warranty Period | 3 yrs |
| Recommended Customer Price | $361.00 - $363.00 |
| Supplemental Information | |
| Embedded Options Available | No |
| Datasheet | View now |
| Description | Other features: Includes Thunderbolt 3 (40Gbps) USB 3.1 Gen 2 (10Gbps) and DP 1.2 via USB-C; also includes microSDXC card slot, dual microphones |
| Product Brief | View now |
| Memory & Storage | |
| Max Memory Size (dependent on memory type) | 32 GB |
| Memory Types | DDR4-2400 1.2V SO-DIMM |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 38.4 GB/s |
| Max # of DIMMs | 2 |
| ECC Memory Supported ‡ | No |
| Processor Graphics | |
| Integrated Graphics ‡ | Yes |
| Graphics Output | HDMI 2.0a; USB-C (DP1.2) |
| # of Displays Supported ‡ | 3 |
| Expansion Options | |
| PCI Express Revision | Gen3 |
| PCI Express Configurations ‡ | M.2 slot with PCIe X4 lanes |
| Removable Memory Card Slot | microSDXC with UHS-I support |
| M.2 Card Slot (storage) | 22x42/80 |
| I/O Specifications | |
| # of USB Ports | 6 |
| USB Configuration | 2x front and 3x rear USB 3.1 Gen2; 2x USB 2.0 via internal headers |
| USB Revision | 2.0, 3.1 Gen2 |
| USB 2.0 Configuration (External + Internal) | 0 + 2 |
| USB 3.0 Configuration (External + Internal) | 2B 2F + 0 |
| Total # of SATA Ports | 2 |
| Max # of SATA 6.0 Gb/s Ports | 2 |
| RAID Configuration | 2.5" HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1) |
| Audio (back channel + front channel) | 7.1 digital (HDMI mDP); L+R mic (F) |
| Integrated LAN | Intel® Ethernet Connection I219-V |
| Integrated Wireless‡ | Intel® Wireless-AC 9560 + Bluetooth 5.0 |
| Integrated Bluetooth | Yes |
| Consumer Infrared Rx Sensor | Yes |
| Additional Headers | CEC, 2x USB2.0, FRONT_PANEL |
| # of Thunderbolt™ 3 Ports | 1 |
| Package Specifications | |
| Chassis Dimensions | 117 x 112 x 51mm |
| Advanced Technologies | |
| Intel® Optane™ Memory Supported ‡ | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| TPM | No |
| Intel® HD Audio Technology | Yes |
| Intel® Rapid Storage Technology | Yes |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
| Security & Reliability | |
| Intel® AES New Instructions | Yes |
90AR00C1-M00040
10 Items
Data sheet
- Processor
- i3
- Graphics
- Intel Shared
- Software
- DOS
- Generation
- 13th
Specific References
