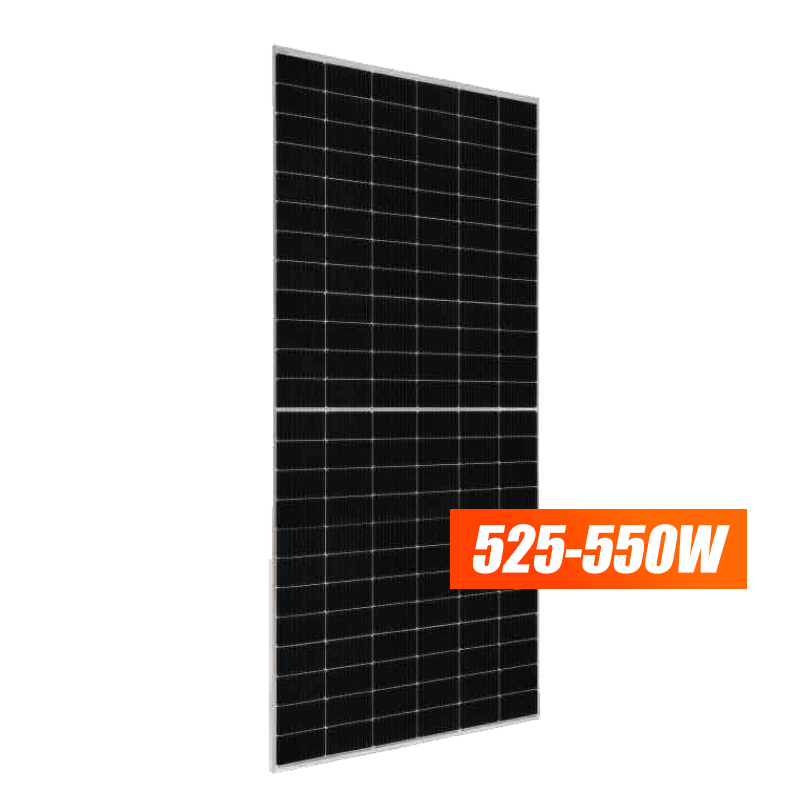

Bluesun Mono Solar Panel Bsm550M10-72Hph 525-550W
Max Power(Pmax) [W] 525
Max System Voltage DC 1500V (IEC)
Max Series Fuse Rating 25A
Solar Cells Mono Perc 182mm×182mm
Dimensions 2279±2mm×1134±2mm×35±1mm
Weight 28.6kg±3%
Front Load 5400Pa
Connector Type PV Connector
Cables 4mm² (IEC)
Daily Updated Website
Delivery all Over Lebanon
Best Price Guaranteed
Max Power(Pmax) [W] 525
Open Circuit Voltage (Voc) [V] 49.15
Max Power Voltage (Vmpp) [V] 41.15
Short Circuit Current (Isc) [A] 13.65
Max Power Current(Imp) [A] 12.76
Module Efficiency [%] 20.3
Power Tolerance 0-5W
Max System Voltage DC 1500V (IEC)
Max Series Fuse Rating 25A
Solar Cells Mono Perc 182mm×182mm
Dimensions 2279±2mm×1134±2mm×35±1mm
Weight 28.6kg±3%
Front Load 5400Pa
Connector Type PV Connector
Junction Box IP68, 3 bypass diode
Cables 4mm² (IEC)
Glass 3.2mm High Transmission Tempered Glass
Frame Anodized Aluminum Alloy
